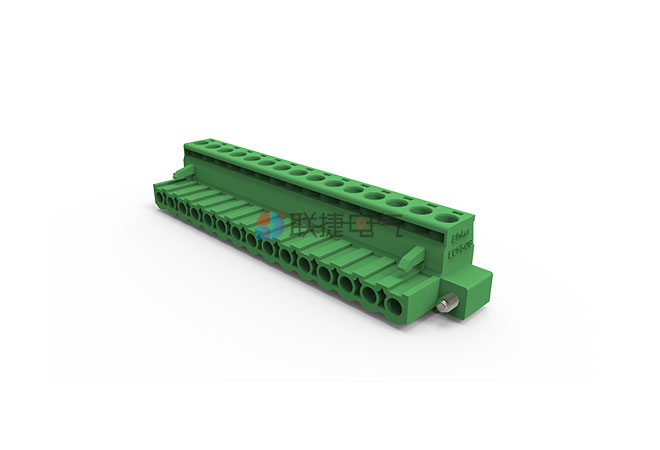

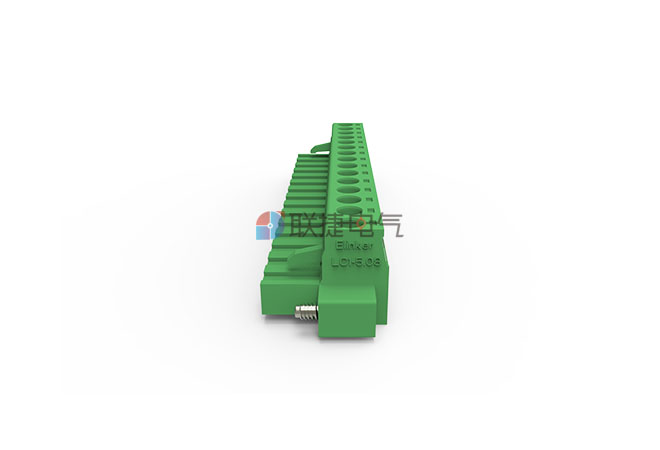

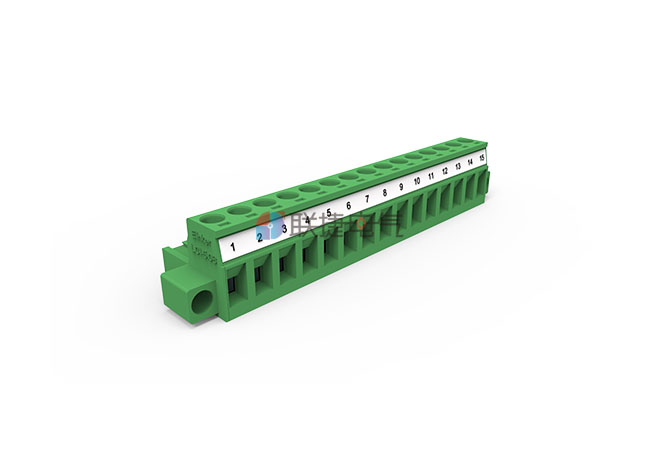

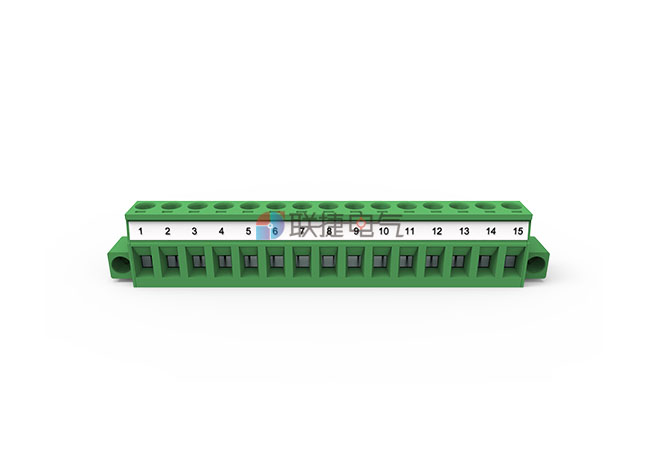

LZ1RM-5.08-15P-140

LZ1VM-5.08-15P-140

Description

Property

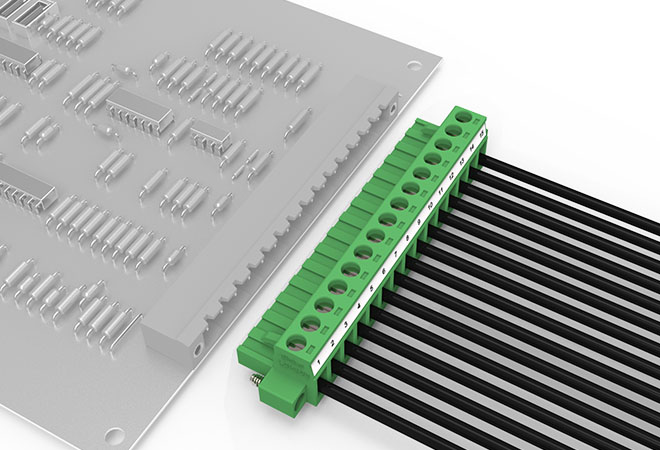

Scene

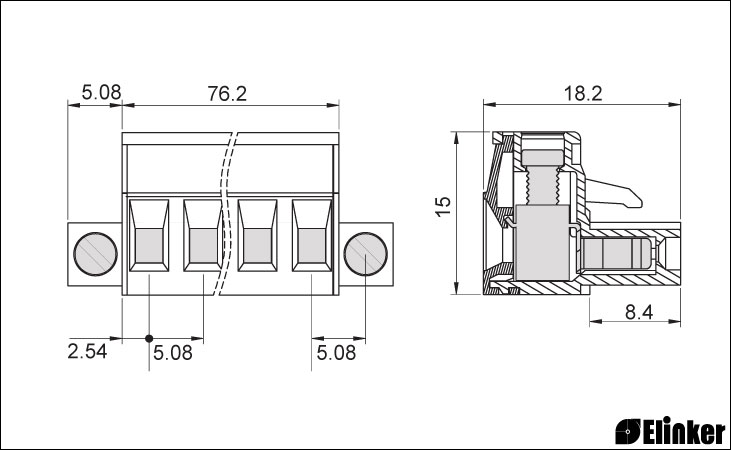

Drawings

Packing

插拔式接线端子压线方式示意图

将导线置于压线框内,拧紧螺丝,压线框随着螺丝拧紧的方向向上移动,最终固定.





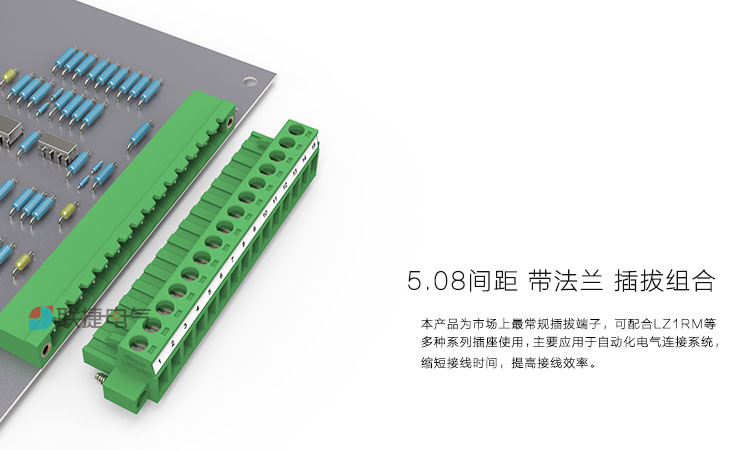

   优势

  法兰固定，安装牢固；

  结构高度低，便于在狭小空间安装；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

  插头插座防错插防错位保护，避免接线错误。

点击访问：     YL1-5.08   PT1-5.08

Product Attribute

[Rated current(A)] 17.5A【IEC】15A【UL】

[Temperature(℃):] -40℃~120℃

[Rated voltage(V)] 320V【IEC】300V【UL】

[Rated current(mm²):] 2.5

[Wire Size(AWG):] 24-12

[Single/multi-core diameter(mm²):] 0.2-2.5

[Maximum locking torque(Nm):] 0.5-0.6

[Screw:] M3

[Strip length(mm):] 7

[Resistant voltage(kv):] 4

[Insulation Resistance:] V0

[Poles(P):] 2-4

[Terminal Block:] pluggable terminal/PCB terminal block
