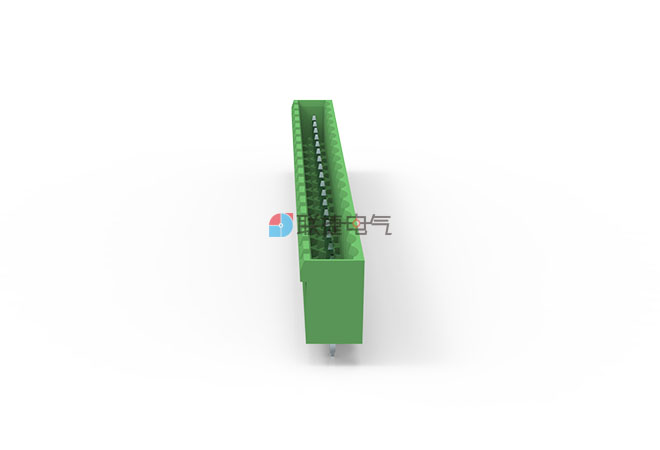

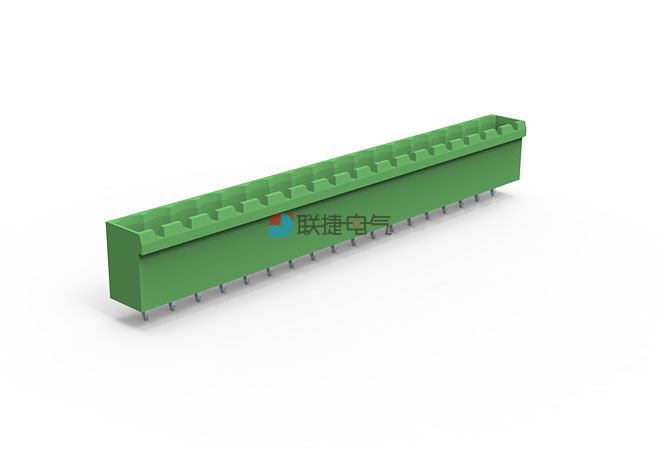

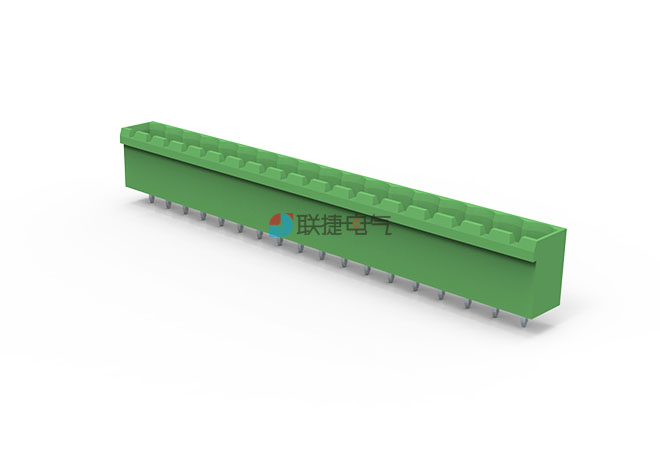

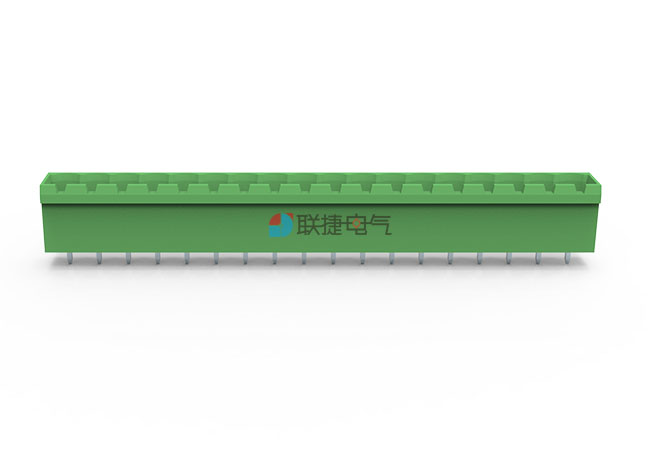

LZ1V-5.08-18P-140



       优势

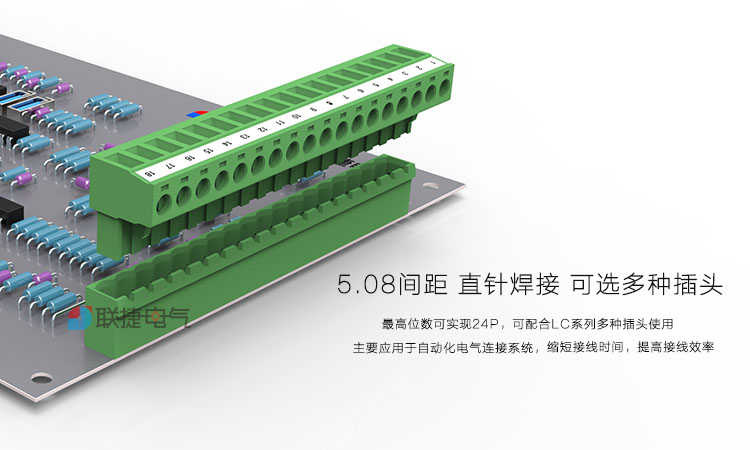

  水平型焊针,封闭型壳体,无安装螺丝；

  2-12P常备,最高可定制24P产品；

  通过防错插件对插头插座进行防错位保护。







Product Attribute
[Rated current(A)]	15A【UL】17.5A【IEC】
[Rated voltage(V)]	300V【UL】320【IEC】
[Insulation Resistance:]	PA/V0
[Poles(P):]	18p

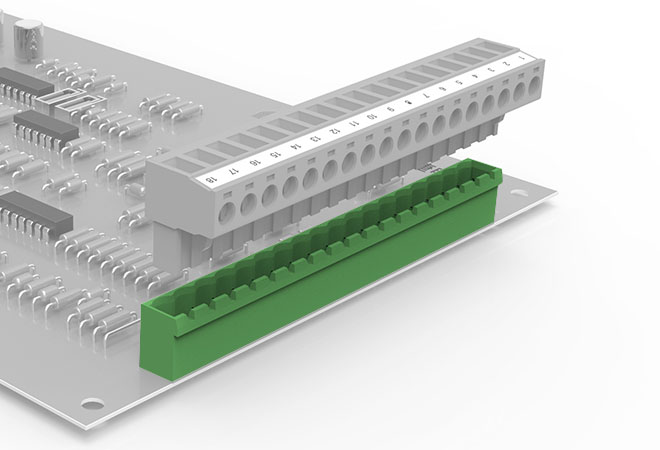

[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTBVA 2,5/18-G-5.08 MSTBVA2.5/18-G-5.08 1755891 SL 5.08HC/18/180G 3.2SN OR BX SL5.08HC/18/180G 1147090000 SL 5.08HC/18/180G 3.2SN BK BX 1149170000 2EHDVC-18P 2EHDVC18P 2EDGVC-5.08-18P-14 2EDGVC-5.08-18P OQ-5.08-18P-180D Close OQ1854500000G OQ-C/180D-5.08-18P 18POS 5.08MM CE VRT HDR, TRM BLK 18POS5.08MMCEVRTHDR.TRMBLK 1-796636-8 1-796637-8 STLZ950/18G-5.08-V-绿色 50950185121D PTB750S-03-2-18-3 ME040-50818 F85-5-5.08-18P F855E1800051 PCB排针 8213 S / 18 G PCB排针 8213 S / 18 G OB 8213S/18GOB 25.350.4853.0

Product Attribute
[Rated current(A)]	15A【UL】17.5A【IEC】
[Rated voltage(V)]	300V【UL】320【IEC】
[Insulation Resistance:]	PA/V0
[Poles(P):]	18p
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTBVA 2,5/18-G-5.08 MSTBVA2.5/18-G-5.08 1755891 SL 5.08HC/18/180G 3.2SN OR BX SL5.08HC/18/180G 1147090000 SL 5.08HC/18/180G 3.2SN BK BX 1149170000 2EHDVC-18P 2EHDVC18P 2EDGVC-5.08-18P-14 2EDGVC-5.08-18P OQ-5.08-18P-180D Close OQ1854500000G OQ-C/180D-5.08-18P 18POS 5.08MM CE VRT HDR, TRM BLK 18POS5.08MMCEVRTHDR.TRMBLK 1-796636-8 1-796637-8 STLZ950/18G-5.08-V-绿色 50950185121D PTB750S-03-2-18-3 ME040-50818 F85-5-5.08-18P F855E1800051 PCB排针 8213 S / 18 G PCB排针 8213 S / 18 G OB 8213S/18GOB 25.350.4853.0
