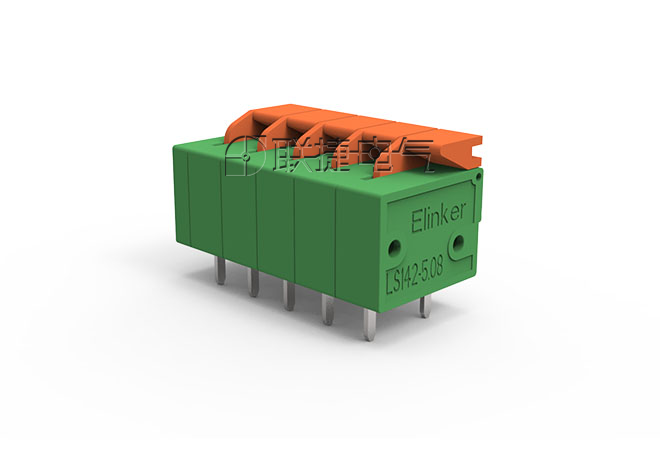

Location Home > PCB Spring Terminal > Pole 7.62/5.08 > LS142R-5.08/LS142R-7.62

Description

Property

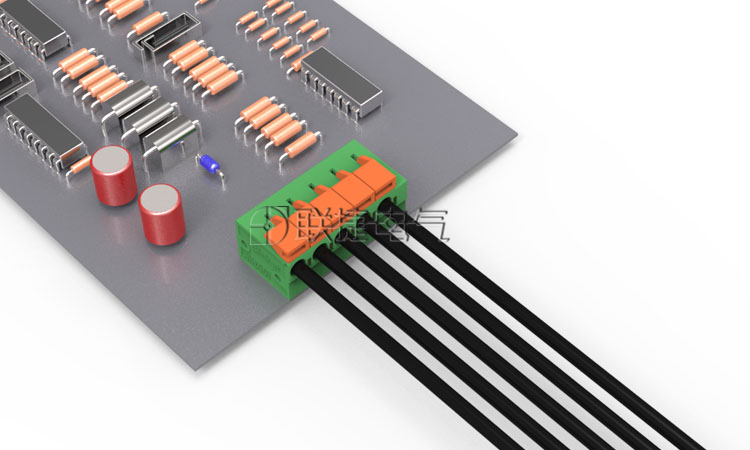

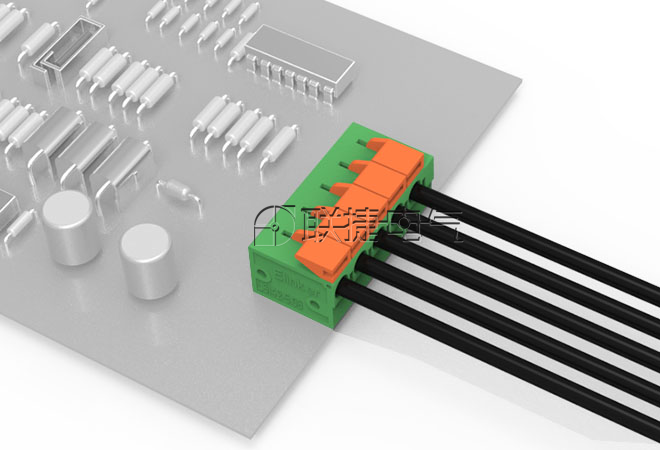

Scene

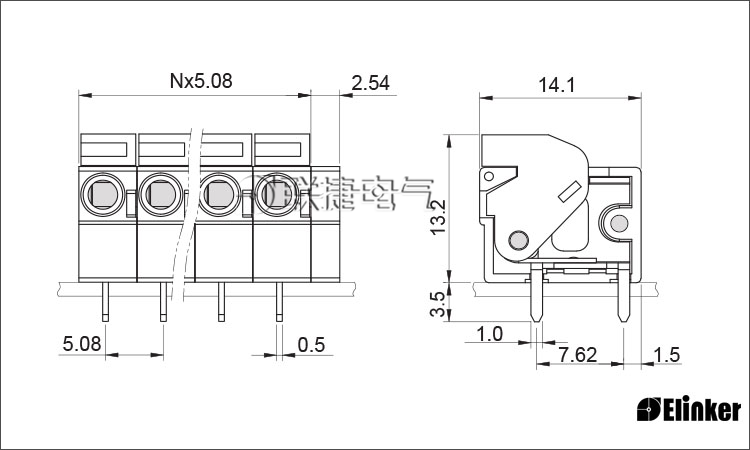

Drawings

Packing

优势

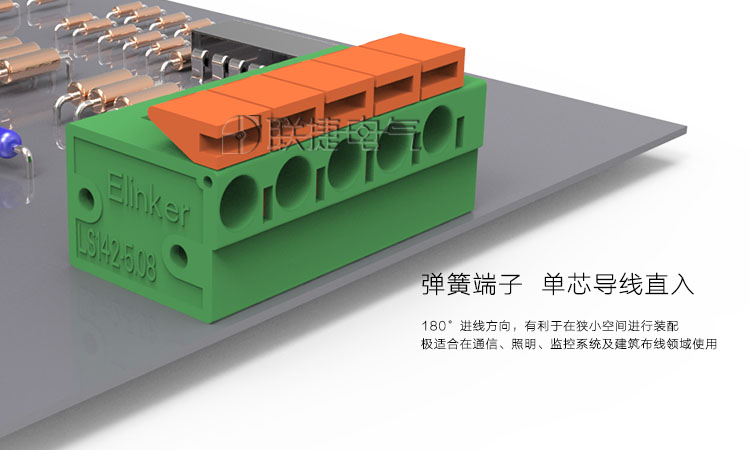

  180°进线方向，位数灵活；

无按键规格，结构高度低；

  可以连接截面积为1.5mm²的柔性导线；

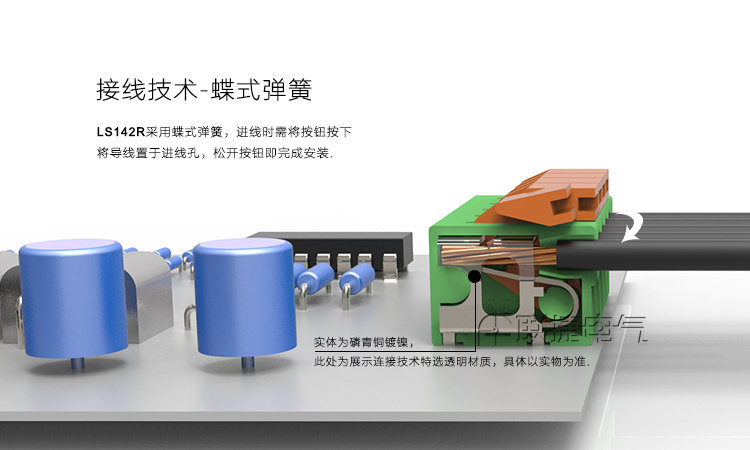

  碟式弹片连接，方便快捷。

Product Attribute

[Rated voltage(V)] 450V

[Rated current(A):] 17.5A

[Rated current(mm²):] 1.5

[Wire Size(AWG):] 22-14

[Strip length(mm):] 10

[Resistant voltage(kv):] 2

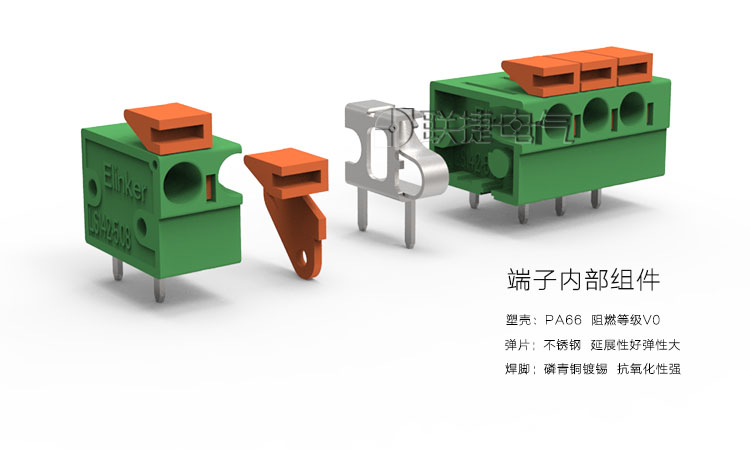

[Insulation Resistance:] PA/V0

[Poles(P):] 1-XX

Product Attribute
[Rated voltage(V)]	450V
[Rated current(A):]	17.5A
[Rated current(mm²):]	1.5
[Wire Size(AWG):]	22-14
[Strip length(mm):]	10
[Resistant voltage(kv):]	2
[Insulation Resistance:]	PA/V0
[Poles(P):]	1-XX
